EV Charging Sockets

  • 1000V DC SAE J3400 350A NACS Charge Inlet Assembly
  • 1000V DC SAE J3400 350A NACS Charge Inlet Assembly
  • 1000V DC SAE J3400 350A NACS Charge Inlet Assembly
  • 1000V DC SAE J3400 350A NACS Charge Inlet Assembly
1000V DC SAE J3400 350A NACS Charge Inlet Assembly1000V DC SAE J3400 350A NACS Charge Inlet Assembly1000V DC SAE J3400 350A NACS Charge Inlet Assembly1000V DC SAE J3400 350A NACS Charge Inlet Assembly

1000V DC SAE J3400 350A NACS Charge Inlet Assembly

  • Rated Power: 350KW
  • Rated voltage: 1000V DC
  • Rated Current: 350A
  • IP protection class: IP 67 ( working condition)

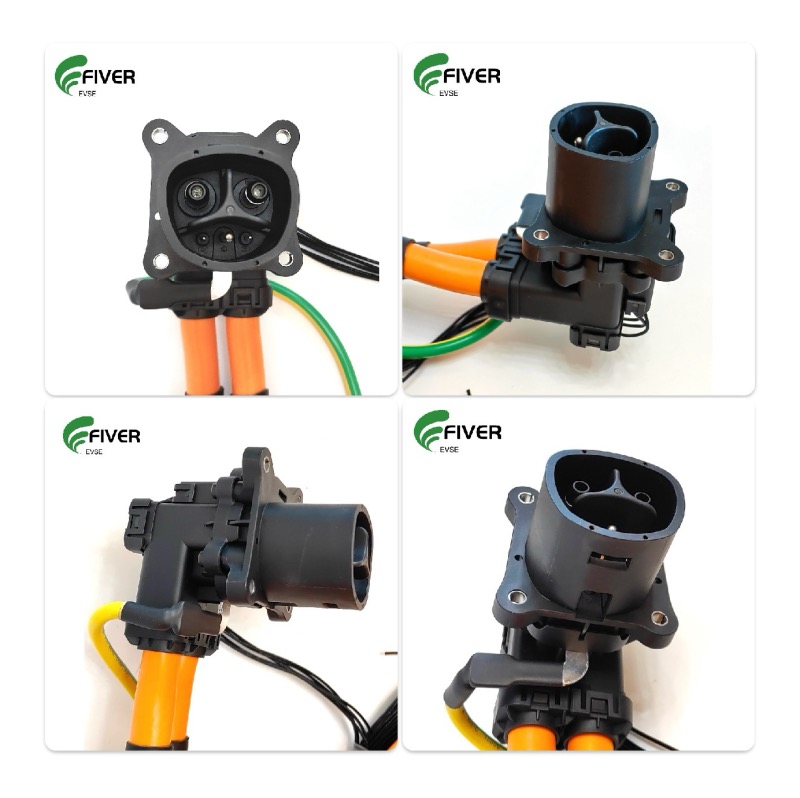

  • Product description: This 350A NACS charge inlet/socket is UL certified is for the electric vehicles adopt NACS charging standards. it' s module design, comply with SAE J3400 standard. Cable length can be customized as cu
  • INQUIRY

1000V DC SAE J3400 350A NACS Charge Inlet Assembly

1000V DC SAE J3400 350A NACS Charge Inlet Assembly

Product Parameters for this 350A NACS Charge Port

Rated Current

350A

Rated Voltage

1000V DC

Signal Current

2A

Contact Resistance

0.5 mΩ Max

Withstand Voltage

3000V

Flammability Rating

UL94V-0

Mechanical Lifespan

>10000 Mating Cycles

Casing Protection Rating

IP67

Casing Material

Thermoplastic UL94V-0

Contact Material

Copper alloy, silver plated

Terminal Temperature Rise

<50K

Insertion & Withdrawal Force

<100N

Certification

UL

Warranty

24 months/10000 Mating Cycles

Operating Environment Temperature

-40℃- +50℃


Product Features of this 350KW Tesla Charge Inlet:

1> This NACS Charge inlet is design and manufactured according to standard NACS-TS-00236661, and UL certified.

2> The NACS charge port is a combination of AC/DC charging the highest amperage is 350A, rated voltage is 1000V DC.

3> The Tesla charge inlet assembly is with cables, the cable length can be customized according to customers' requirements.

4> The J3400 NACS charge inlet is module design.

5> OEM service welcomed


Terminal Diagram for the NACS Charge Inlet:

NACS Charge inlet pinout



350A NACS Charge Inlet Wiring Diagram and Cable Specifications:



#nacs charge port #nacs charge inlet #350A nacs charging sockets #tesla supercharger #DC Fast Charging
