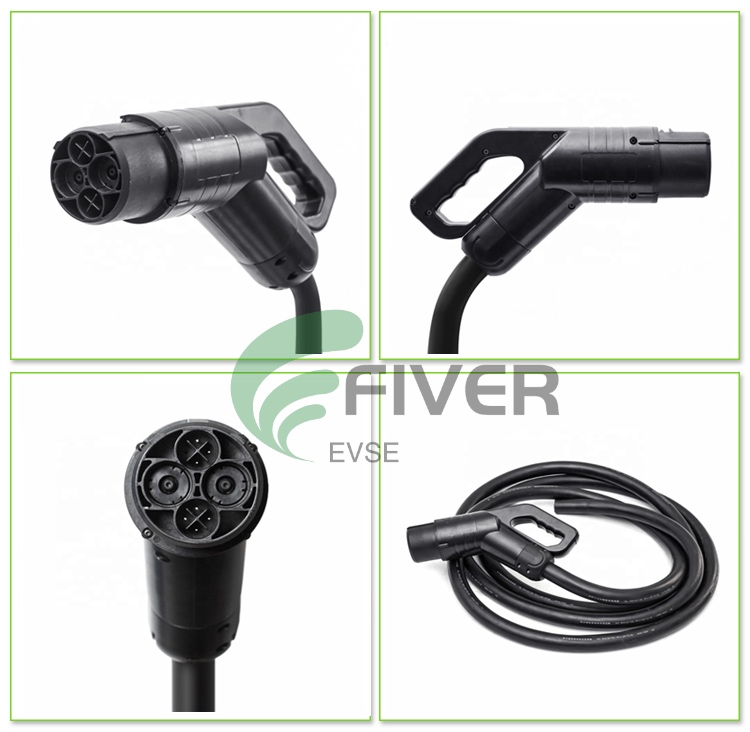

125A/150A/200A CHAdeMo DC Charging Connector

The CHAdeMO connector is a fast-charging system for battery electric vehicles and hybrid electric cars developed in 2010 by the CHAdeMO Association, which included major Japanese automakers and Tokyo Electric Power Company. The name "CHAdeMO" is an abbreviation of "CHArge de MOve," which translates to "charge for moving" or "how about a cup of tea?" in Japanese. It supports DC Fast Charging with power levels up to 62.5 kW in its first generation, 400 kW in its second generation, and aims for up to 900 kW in its third-generation ChaoJi specification, which also ensures backward compatibility with previous standards. The connector features a proprietary electrical design with 10 pins and supports Vehicle-to-Grid (V2G) integration, allowing vehicles to act as energy storage devices. While CHAdeMO remains popular in Japan, its market share has declined in other regions as the Combined Charging System (CCS) has become more prevalent, though the ChaoJi connector aims to address compatibility concerns by working with CCS and other standards.

Features

1- The CHAdemo plug with safety pins insulated head design to electric shock by accidental touch.

2- This CHAdeMO Charging Connector is JEVSG 105 Compliant, CE and Rohs certified. Reliable and rapid charging.

3- The CHAdeMO DC charging connector can be installed on the fast DC EV charging station as electric outlet to charge the cars with CHAdemo charging inlet.

4- This Chademo charging cable is suitable for following cars

• Toyota Prius Plug-In.
• Citroen C-Zero.
• Nissan Leaf.
• Mitsubishi Outlander PHEV.
• Nissan e-NV200.
• Kia Soul EV Mk1.
• Citroen Berlingo Electric Mk1.
• Tesla Model S (with an adapter fitted)

6- LED charging indicator, charging status is clear in a glance.

7- TPU cable jacket flame retardant, environmental protection, wear resistance, crush resistance, impact resistance, oil resistance, and UV resistance. provides efficient charging service for new energy vehicles. the cable length is customizable.

8- US standard and Europe standard optional.

Product Specifications:

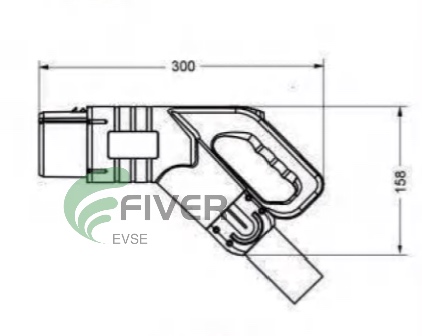

The Chademo charging Plug Measurements:

The Chademo DC charging Connector Pinout as following

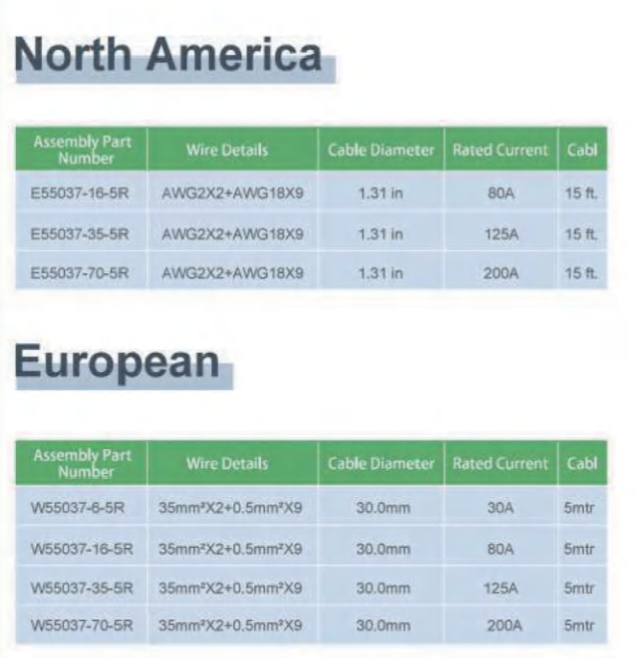

Chademo Charging Cable Specifications:
