EV Charging Adaptors

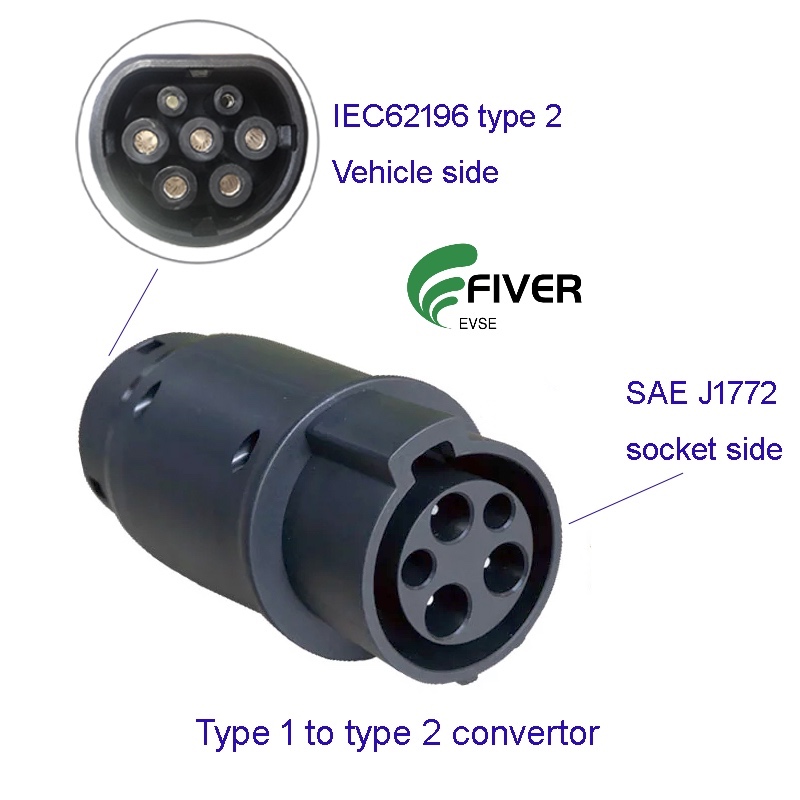

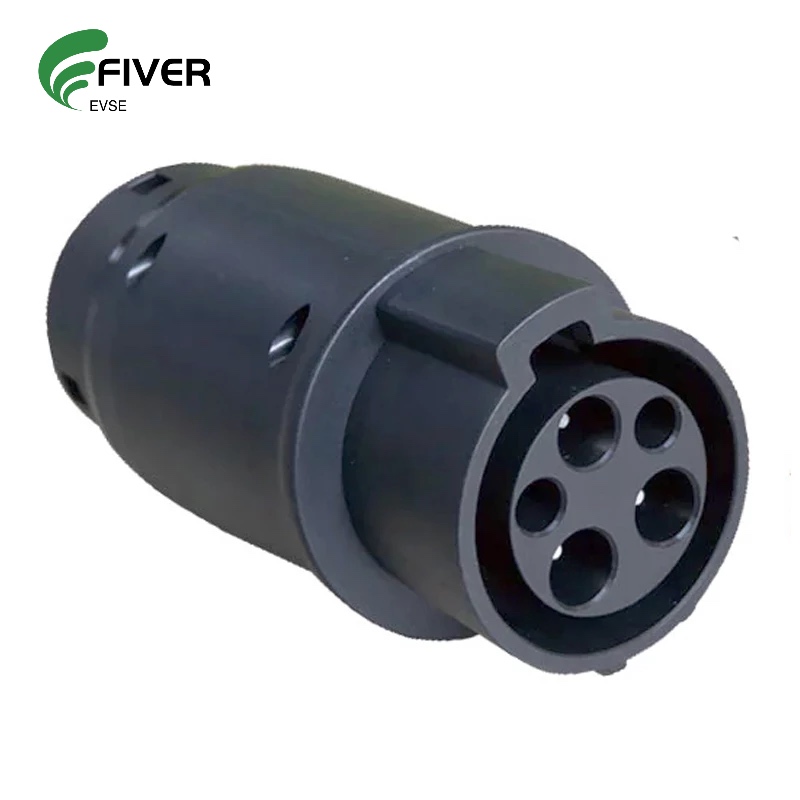

Electric Vehicle Charging Adapter Barrel 32A EV Charger Connector Type 1 to Type 2 SAE j1772 to IEC62196

Electric Vehicle Charging Adapter Barrel 32A EV Charger Connector Type 1 to Type 2 SAE j1772 to IEC62196

Rated current: 16A/32A
Rated voltage: 110V-250V AC
Operation Temp.:-30℃ ~ + 50℃
IP protection class: IP 54 ( working condition)
Product description: This Type 1 to type 2 EV Charging Adapter， with a type 1 charging port and a type 2 charging connector, can be used to charge type 2 electric vehicle with a type 1 cahrger
INQUIRY

Features

1.Conform to the provisions and requirements of IEC 62752, IEC 61851.

2.Using riveting pressure process with none screw ,have a beautiful appearance. Hand-held design conform to the ergonomic principle , plug conveniently.
3.TPE for cable insulation prolonging the aging resistance life-span, TPE sheath improved the bending life and wear resistance of EV charging cable.
4.Excellent protection performance, protection grade achieved IP67 (working condition).

Materials
Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)
Contact Pin: Copper alloy, silver or nickel plating
Sealing gasket: rubber or silicon rubber

TPE insulation,TPE Sheath EV Charging Cable for EV Plug & EV Socket ,32A 240V 62196

Rated Current:	16A/32A
Operating Voltage:	110V-250VAC
Insulation Resistance:	>1000MΩ(DC500V)
Withstand Voltage	2000V
Contact Pin	Copper alloy, Silver plating
Working temperature	-30°C ~+50°C
Flame Retardant Grade	UL94 V-0
Contact Resistance	0.5mΩ Max
Waterproof	IP67
Certificate	CE, TUV Approved
